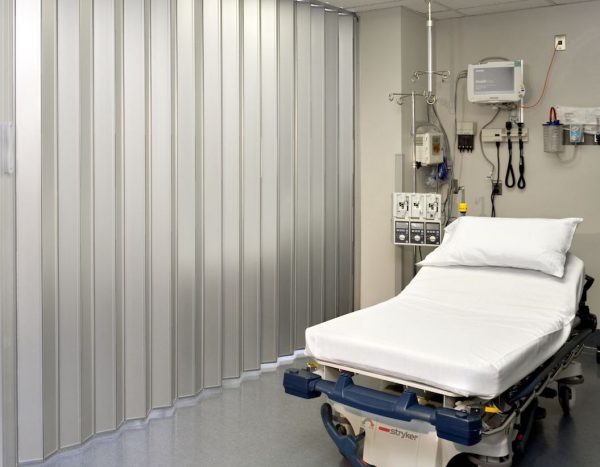

Woodfold 640 Accordion Door

Woodfold Vinyl-Lam Color Chart
Woodfold Natural Hardwood Veneers Color Chart

Please Call
Prices Vary Per Project

Series 640 Product Specifications

  • Panels: 4-1/4″ wide solid or perforated aluminum in bronze, clear (silver) or gold
  • Panel Connectors: Flexible vinyl color-coordinated to panels
  • Track: 1-1/8″ x 1″ aluminum, dark bronze, clear (silver) or gold finish; curvable option available
  • Wheels: Nylon wheels on steel axles with ball bearings supplied as standard.
  • Lead Post: 3/4″ x 2-3/4″ color coordinated to panel connectors
  • Jamb Molding: 1″ wide x 3/8″ deep aluminum
  • Latch: Deadlatch with thumbturn two sides; other options available
  • Handles: Molded PVC with finger recess
  • Width: No limitation
  • Height: Bronze and gold up to 8’1″; clear up to 10’1″
  • Stacking Space: 1-1/4″ per foot plus 2-3/4″ for lead post

* Woodfold’s Series 140, 220, 240, 440 and 540 have been tested for ADA compliance for opening load force per ADA/BOMA SEC 4.1311. Tests were conducted by MEI Charlton, Inc., Portland, OR. Certain ADA applications may call for specific handle location placement which should be specified when door is ordered.
